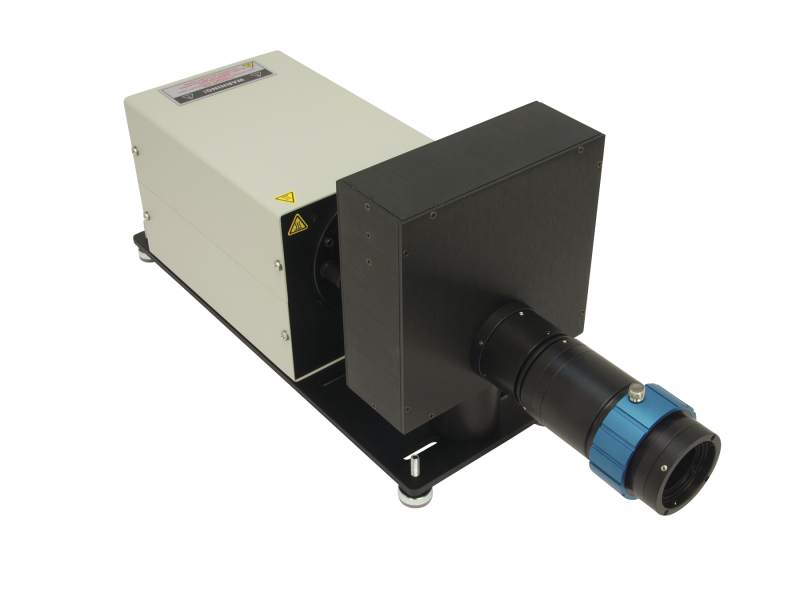

XE100 100W氙灯光源 (推荐高校 光谱测试、太阳能模拟器 进口光源)

XE100 100W氙灯光源 (推荐高校 光谱测试、太阳能模拟器 进口光源)




100W氙灯光源采用无臭氧氙灯(6002)作为照明光源,氙灯光谱覆盖紫外、可见和近红外,和太阳光谱其近似,广泛作为太阳能模拟器。因高功率、宽谱输出而受吸收和荧光激发等欢迎。光谱范围260nm以上,无臭氧。

The XE100 uses the 6002 100 W Ozone Free Xe lamp as its illumination source. Xe arc lamps produce a spectral output curve that is almost featureless in the UV and NIR regions, with characteristic Xe lines emitted from 750-1000 nm. Due to their sun-like emission spectrum, Xe lamps are widely used for solar simulation applications. Their high intensity, broadband output also make them popular excitation sources for absorbance and fluorescence applications. The 6002 is an Ozone Free Xe lamp, useful for applications that do not require wavelength emission below 260 nm and features an ellipsoidal reflector to maximize light throughput throughout the 100 W Xe Light Source.

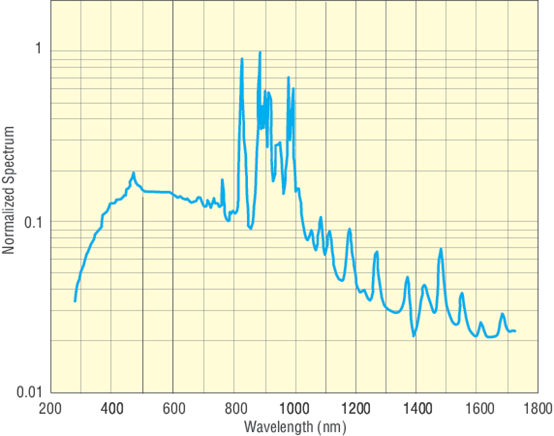

光谱曲线(Spectra):

主要特点:

简单光学耦合

完全集成、即插即用

光强可调

手动光开关

Features

Easy Optical Coupling

Fully Integrated, Plug and Play System

Adjustable Lamp Intensity

Manual Shutter



技术参数(Technical Specs

灯泡类型(Lamp Type)Xe, Ozone Free

灯泡功率(Lamp Wattage):100 W

光斑直径(Output Beam Size):33 mm

灯泡寿命(Average life):1000 h

发散角Beam Divergence,Half Angle4.0 ± 0.5 °

F/#F/4

透镜材料(Lens Material):Fused Silica

光谱范围(Spectra Range):260-2500 nm

光波动(Light Ripple):<0.2 % rms

线性(Line Regulation):001

输入(Power Requirements): 200-240 VAC, 50/60 Hz

滤光片片尺寸(Filter Size:25.4 mm

滤光片轮(Filter Wheel):Six Positions (Order Filters Separately)

操作温度(Operating Temperature):5 to 40 °C



操作适度(Operating Humidity):<80% relative humidity (non-condensing)



光学开关:

光学开关用于关闭光路,不需要光照时保护使用人员免受紫外线辐射,比如:预热光源、安装光学元件,无需频繁开关光源。

Manual Shutter

A manual shutter is integrated into the THL100 to allow the user to close off the light path, blocking any light output from the system. This allows the user to be protected from UV radiation when light output is not required, such as warming up the lamp while preparing a setup or making a minor change in setup, without frequent and unnecessary restarts of the lamp.



六档滤光片轮:

六档滤光片轮,可以安装1-6个不同滤光片,直径25.4mm1英寸),便于滤光片。

Integrated Six Position Filter Wheel



A filter wheel is integrated into the assembly of the THL100. Up to six order-sorting or neutral density filters can added (1.0 in or 25.4 mm diameter, 0.2 in. or 6 mm thickness) and filters can be changed.



360°光路转向器

360°旋转,镀ALMgF2增反膜,光谱范围200-2500nm,用于宽谱输出。

Full Reflector Beam Turning Mirror, 200-20,000 nm



The Full Reflector Beam Turning Mirror is are coated with an AlMgF2 coating optimized to increase reflectivity in the ultraviolet. It is useful from 200 nm to 30 μm spectral range. Use it when broadband output is needed.
