HL50 50W科研卤钨灯光源

HL50 50W科研卤钨灯光源


 HL系列光源采用不同功率灯泡作为照明光源,比孤光灯更稳定,且不会发出强紫外光和臭氧,平滑的曲线输出,更适合光谱应用。

The Light Source uses different power lamps as its illumination source. This Tungsten Halogenlamp exhibit better output stability than arc lamps and do not produce strong UV light emission or toxic ozone. Their smooth spectral output curve make them useful for radiometric and photometric applications.



特点:

简单光学耦合

完全集成、即插即用

光强可调

手动光开关

-中等强度的可见光-近红外辐射的宽谱光源

高稳定性



Features

Easy Optical Coupling

Fully Integrated, Plug and Play System

Adjustable Lamp Intensity

Manual Shutter

Broadband sources of CW, visible to NIR light with minimal UV emission

High stability

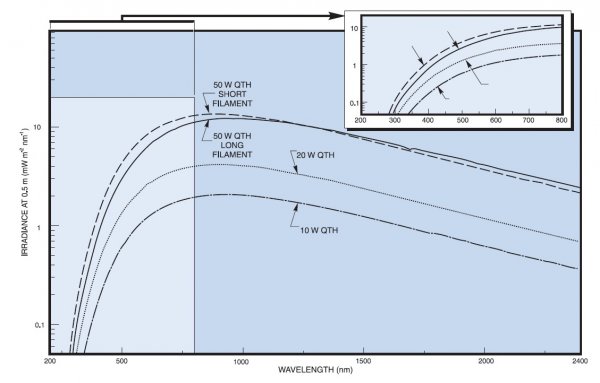

光谱曲线(Spectral):



技术参数(Technical Specs

灯泡类型(Lamp Type)QTH

灯泡功率(Lamp Wattage):1020501002506001000 W

光斑直径(Output Beam Size):50 mm

灯泡寿命(Average life):2000h

发散角Beam Divergence,Half Angle4.0 ± 0.5 °

F/#F/4

透镜材料(Lens Material):Fused Silica

光谱范围(Spectra Range):260-2500 nm

光波动(Light Ripple):<0.2 % rms

线性(Line Regulation):0.01

输入(Power Requirements): 200-240 VAC, 50/60 Hz

滤光片片尺寸(Filter Size:59 mm

操作温度(Operating Temperature):5 to 40 °C

操作适度(Operating Humidity):<80% relative humidity (non-condensing)

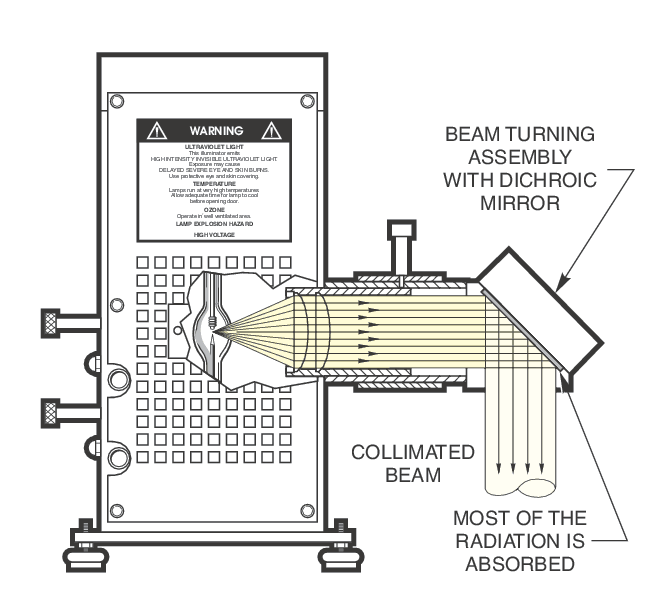

360°光路转向器

360°旋转,镀ALMgF2增反膜,光谱范围200-2500nm,用于宽谱输出。

Full Reflector Beam Turning Mirror, 200-2500 nm

The Full Reflector Beam Turning Mirror is are coated with an AlMgF2 coating optimized to increase reflectivity in the ultraviolet. It is useful from 200 nm to 30 μm spectral range. Use it when broadband output is needed.



选配件:光纤、光耦合接口、滤光片等。
